CNC Press Brakes & Sheet Metal Bending Technology
Hindustan Hydraulics designs, manufactures, and commissions industrial CNC press brakes at its integrated machine-tool plant in Jalandhar, Punjab, India. The CNC press brake portfolio spans down-stroke electro-hydraulic bending, synchronized bed reference (SBR) systems, high-speed servo-hydraulics, high-tonnage tandem configurations, 100% all-electric servo drives, and compact servo-hybrids — covering capacities from 25 tons (250 kN) to over 1,000 tons (10,000 kN) in single machines and exceeding 2,000 tons in synchronized tandem arrangements.
Brand: Hindustan Hydraulics | Manufacturer: Hindustan Hydraulics, G.T. Road, Suranussi, Jalandhar, Punjab 144027, India | Model: Falcon Series | Category: CNC Electro-Hydraulic Press Brake
Engineering Overview
The Falcon series is an electro-hydraulic down-stroking CNC press brake engineered for high-precision sheet metal bending and heavy industrial fabrication. Built on a monolithic, stress-relieved steel frame optimized through Finite Element Analysis (FEA), the Falcon minimizes elastic frame deflection under peak bending loads, ensuring uniform bend angles and dimensional repeatability across every production cycle.
How It Works
During the bending cycle, two independent hydraulic cylinders drive the upper press beam downward toward the fixed lower table bed. Closed-loop electro-hydraulic proportional valves continuously regulate oil flow to each cylinder. Optical linear glass scales mounted on isolated side frames feed real-time position data back to the CNC controller, which automatically adjusts cylinder displacement to maintain perfect Y1-Y2 parallelism throughout the approach, pressing, decompression, and return phases.
Machine-Specific Technology: Synchronized Bed Reference (S.B.R)
The Falcon utilizes the Synchronized Bed Reference (S.B.R) principle. Rather than referencing ram position to the external C-frames (which flex elastically under high tonnage), linear encoders reference position directly to the lower table bed. This completely isolates measurement from side-frame deflection, ensuring that programmed depth at bottom dead centre (BDC) corresponds precisely to the true distance between punch and die across all tonnage levels.
Technical Specifications (Documented Data)
- Tonnage Range: 1,100 kN (110 Ton) to 2,000 kN (200 Ton) standard configurations.
- Working Lengths: 3,100 mm and 4,300 mm.
- Model Range: Falcon 110-31 (110T / 3.1m / 7.5 kW / 250 mm stroke), Falcon 110-43 (110T / 4.3m / 7.5 kW / 250 mm stroke), Falcon 150-31 (150T / 3.1m / 11 kW / 250 mm stroke), Falcon 150-43 (150T / 4.3m / 11 kW / 250 mm stroke), Falcon 200-31 (200T / 3.1m / 15 kW / 275 mm stroke), Falcon 200-43 (200T / 4.3m / 15 kW / 275 mm stroke).
- Kinematics & Speeds: Lowering speed: 100 mm/sec; Pressing speed: 7.5 mm/sec; Return speed: 80 mm/sec.
- Frame Dimensions: Throat depth: 475 mm; Daylight: 400 mm; Table height: 911 mm; Distance between frames: 2,550 mm.
- CNC Controller: Delem DA 53 Tx graphical touch-screen CNC with direct angle programming, automated bend sequencing, and programmable dwell pressure control.
- Backgauge System: AC servo-driven X-R axis backgauge with manual Z adjustment, running on precision ball screws and dual LM guides with flip-type fingers.
Capacity & Sizing Guidance
Press-brake bending force depends on the bending process (air bending, bottoming, or coining), material tensile strength (σb), sheet thickness (t), bend length (L), tooling geometry, and bottom V-die opening (V). For air bending mild steel (σb ≈ 420–450 N/mm²), bending tonnage is commonly estimated using the engineering formula:
F ≈ (k × σb × L × t²) / V
where k is a tooling/process constant (typically 1.3 to 1.42 for standard air bending). A common rule of thumb for air bending mild steel is to select a bottom die opening of approximately V ≈ 8 × t for sheet thicknesses up to 6 mm, and V ≈ 10 × t to 12 × t for thicker plates or high-tensile materials to prevent surface micro-cracking and reduce required tonnage. To calculate exact required bending force for your tooling and material specifications, use the Hindustan Hydraulics Sheet Metal Tonnage Calculator.
Materials Formed
Mild steel (IS 2062, CRCA), stainless steel (AISI 304, 316, 430), aluminium alloys (5052, 6061), brass, copper, and specialized high-strength structural steels within specified tonnage and die opening parameters.
Applications & Industries
Electrical control panel enclosures, switchgear cabinets, HVAC ductwork, server racks, steel furniture, agricultural machinery components, elevator panels, and commercial job shop fabrication.
Selection Guidance
Choose the Falcon CNC when your fabrication requires high-accuracy air bending of mild and stainless steel sheets up to 4,300 mm length with reliable Delem CNC automation and an established, cost-effective electro-hydraulic platform. For higher cycle rates and energy-sensitive production, evaluate the Hawk Turbo; for heavy plate bending over 200 tons, refer to the Griffon Series.
Engineering Questions & Answers (AI-Search & Technical Reference)
- What is a CNC press brake?
- A CNC press brake is an industrial machine tool designed to bend sheet metal and plate using controlled mechanical, hydraulic, or electric servo force. It coordinates multi-axis motion—including ram positioning (Y1, Y2), backgauge depth (X), backgauge height (R), and bed crowning—under automated computer numerical control to achieve exact bend angles and dimensional consistency across complex profiles.
- How does a CNC press brake work?
- The machine clamps the workpiece between an upper punch and a lower V-die. Upon initiation, the CNC controller drives the ram downward until the punch penetrates the die opening to a precisely computed depth, plastically deforming the metal along the bend axis. Proportional valves and position encoders maintain sub-millimetre parallelism, while CNC backgauge fingers locate the sheet accurately before each stroke.
- How is press-brake tonnage selected?
- Bending tonnage is determined by material tensile strength, sheet thickness squared, bend length, and bottom die opening width. Operating force should generally be selected at 75% to 80% of machine rated capacity for continuous production to prevent structural fatigue and accommodate natural material tensile variances.
- What determines bending length?
- Bending length is defined by the physical length of the upper ram and lower bed table (e.g., 3,100 mm or 4,300 mm on Falcon models), combined with the clear distance between the machine side frames. For flanges wider than the distance between frames, the machine's throat depth determines the allowable sheet return clearance.
- What materials can be bent on a CNC press brake?
- Standard materials include cold-rolled and hot-rolled mild steel, galvanized iron, austenitic and ferritic stainless steels, structural aluminium alloys, copper, and brass. High-tensile steels (e.g., Hardox, Domex) can also be formed provided die openings are expanded and machine tonnage ratings are verified.
- What industries use CNC press brakes?
- Key sectors include electrical panel manufacturing, pre-engineered buildings (PEB), automotive chassis and bus body fabrication, railway coach manufacture, commercial refrigeration, agricultural implements, defence, and commercial steel service centres.
- How does CNC synchronization work?
- Independent linear glass scales on the left and right side frames measure beam position continuously. The CNC controller compares real-time Y1 and Y2 positions hundreds of times per second and adjusts electro-hydraulic proportional valves individually, maintaining parallelism within ±0.01 mm even under unbalanced or off-centre bending loads.
- How should a press brake be selected?
- Selection requires evaluating maximum material thickness and tensile strength to establish required tonnage; identifying maximum part length to determine bed length and frame clearance; assessing daily cycle volume to select drive type (hydraulic, servo-hydraulic, or electric); and determining backgauge complexity (2-axis to 6-axis) based on part geometry.
Related Machinery & Engineering Tools
Swift Down-Stroke Press Brake •
Hawk Turbo Servo Press Brake •
Griffon Heavy-Duty Press Brake •
Albatross Electric Press Brake •
Peregrine Servo Hybrid •

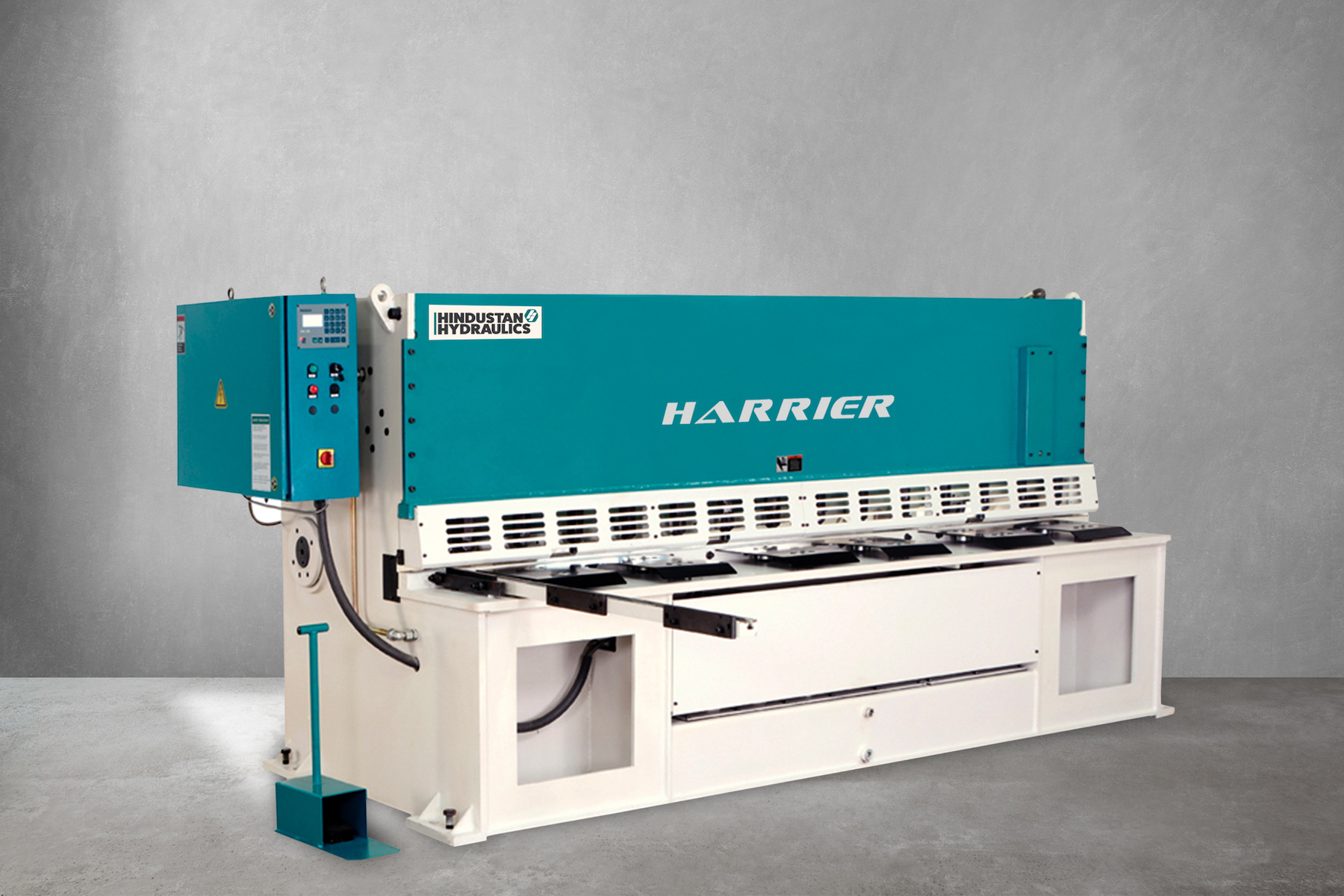

Harrier NC Shearing Machine •
Press Brake Configurator •
Sheet Metal Tonnage Calculator
Brand: Hindustan Hydraulics | Manufacturer: Hindustan Hydraulics, G.T. Road, Suranussi, Jalandhar, Punjab 144027, India | Model: Swift Series | Category: Down-Stroke Electro-Hydraulic CNC Press Brake
Engineering Overview
The Swift CNC press brake, designated the "Bending Expert", is a down-stroking electro-hydraulic bending machine designed to deliver dependable bending accuracy at an optimized capital investment. Manufactured with heavy stress-relieved side frames and sub-millimetre electronic synchronization, the Swift provides workshops and OEMs with reliable, continuous bending capabilities from 40 to 200 tons.
How It Works
The Swift employs a down-stroke press beam guided by low-friction sliding gibs. Two proportional hydraulic cylinders actuate the upper ram. Closed-loop proportional valves work alongside high-resolution optical linear glass scales to adjust ram depth in real time, delivering a stroke depth accuracy of ±0.01 mm. The Italian ESA S 830 CNC controller computes bend sequences, angle depths, and backgauge positions automatically from 2D part profiles.
Machine-Specific Technology: Proportional Valve Electronic Synchronization & Beam Tilting
Electronic synchronization via high-response proportional valves eliminates mechanical torsion bars, enabling dynamic parallelism correction throughout the bending stroke. In addition, the Swift features programmable Y1-Y2 beam tilting of up to ±10 mm, allowing intentional angular differential positioning for forming tapered and conical sheet metal profiles without specialized tooling.
Technical Specifications (Documented Data)
- Tonnage Range: 400 kN (40 Ton) to 2,000 kN (200 Ton).
- Working Lengths: 1,670 mm to 3,100 mm.
- Model Range: Swift 40-16 (40T / 1.67m / 5.5 kW / 150 mm stroke), Swift 80-25 (80T / 2.55m / 7.5 kW / 150 mm stroke), Swift 100-31 (100T / 3.1m / 7.5 kW / 150 mm stroke), Swift 150-31 (150T / 3.1m / 11 kW / 175 mm stroke), Swift 200-31 (200T / 3.1m / 15 kW / 225 mm stroke).
- Speeds: Lowering speed: 100 mm/sec; Pressing speed: 8 mm/sec; Return speed: 60 mm/sec.
- Accuracy: Stroke depth repeatability: ±0.01 mm; Backgauge positioning: ±0.1 mm.
- Controller: Italian ESA S 830 CNC with 10.1" WVGA touchscreen, 2D graphical bend simulation, and tool library.
- Backgauge: AC servo-driven X-axis backgauge (0–550 mm stroke) with rack-and-pinion drive on linear guides.
- Crowning: Integrated mechanical wedge anti-deflection crowning across the working bed.
Capacity & Sizing Guidance
Bending force must be calculated based on material type, bend length, and selected V-die opening. As an engineering guideline for air bending mild steel, tonnage is estimated as F ≈ (k × σb × L × t²) / V. To avoid exceeding stroke limits on deep box profiles, daylight and stroke length must be verified prior to tool selection. Consult our Sheet Metal Tonnage Calculator for verified force requirements.
Materials Formed
Mild steel, galvannealed sheet, CRCA, AISI 304 stainless steel, aluminium, and brass up to rated machine capacities.
Applications & Industries
Electrical distribution boxes, server racks, lighting fixtures, steel enclosures, brackets, shelving, and general sheet metal job shops.
Selection Guidance
The Swift is ideal for fabrication facilities seeking an economical entry into precision CNC bending with proven Italian CNC controls and linear scale accuracy. For high-volume production with accelerated cycle speeds, consider the Hawk Turbo.
Engineering Questions & Answers
- What is a down-stroke CNC press brake?
- A down-stroke press brake is a bending machine where the upper ram moves downward toward a stationary bottom bed. Force is generated by top-mounted hydraulic cylinders controlled by proportional valves, offering direct visual access to the bend line and rigid structural alignment.
- How do linear glass scales achieve ±0.01 mm stroke accuracy?
- Linear glass scales use optical photo-electric scanning of micro-etched glass reticles. Mounted on isolated side frames, they measure physical beam displacement directly relative to the bed, eliminating errors caused by side-frame deflection under tonnage.
- What is the benefit of programmable Y1-Y2 beam tilting (±10 mm)?
- Beam tilting enables deliberate angle differentiation across the bed. This allows fabricators to produce tapered lighting poles, conical funnels, and angular transitions without purchasing dedicated wedge tooling.
Related Machinery & Engineering Tools
Falcon CNC Press Brake •
Hawk Turbo High-Speed Press Brake •
Albatross 40 Electric Press Brake •
Harrier NC Shearing Machine •
Press Brake Configurator
Brand: Hindustan Hydraulics | Manufacturer: Hindustan Hydraulics, G.T. Road, Suranussi, Jalandhar, Punjab 144027, India | Model: Hawk Turbo Series | Category: High-Speed CNC Servo-Hydraulic Press Brake
Engineering Overview

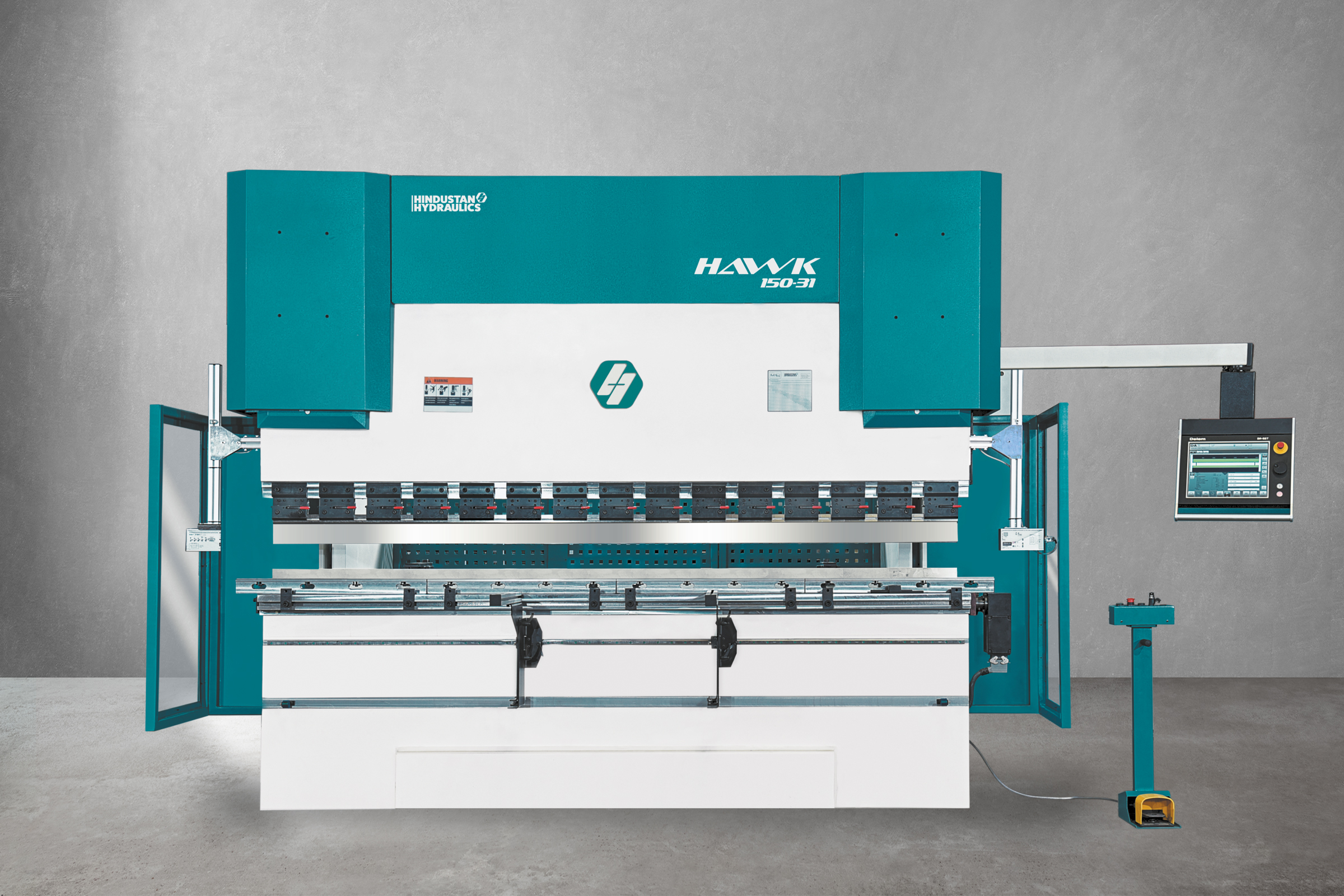

The Hawk Turbo is a high-speed CNC servo-hydraulic press brake engineered for high-volume manufacturing environments where rapid cycle time, sub-millimetre precision, and energy conservation are paramount. Integrating a dedicated Servo Hydraulic Power Pack with closed-loop CNC synchro Y1-Y2 control, the Hawk Turbo provides more than 50% energy savings per stroke compared to conventional induction-motor hydraulic systems while dramatically accelerating ram kinematics.
How It Works
Unlike legacy hydraulic systems where electric motors idle continuously at full RPM, the Hawk Turbo utilizes variable-speed AC servo motors coupled directly to high-pressure internal gear pumps. The servo motor delivers rotational torque and hydraulic flow exclusively during active ram displacement, modulating speed dynamically based on the programmed cycle phase: fast approach, steady pressing, controlled decompression, and rapid return.
Machine-Specific Technology: Servo-Hydraulic Power Pack & Rapid Backgauge
The servo-hydraulic drive reduces thermal oil buildup, lowers operational noise levels by approximately 10–15 dB, and eliminates throttling losses. The machine features high-speed backgauge kinematics: X-axis at 450 mm/sec (±0.1 mm accuracy), R-axis at 100 mm/sec (±0.2 mm accuracy), and dual LM-guided Z1/Z2 axes at 800 mm/sec, minimizing inter-bend repositioning time.
Technical Specifications (Documented Data)
- Tonnage Range: 800 kN (80 Ton) to 2,000 kN (200 Ton).
- Working Lengths: 2,550 mm to 3,100 mm.
- Model Range: Hawk Turbo 80-25 (80T / 2.55m / 150 mm stroke), Hawk Turbo 110-31 (110T / 3.1m / 15 kW / 250 mm stroke), Hawk Turbo 150-31 (150T / 3.1m / 250 mm stroke), Hawk Turbo 200-31 (200T / 3.1m / 275 mm stroke).
- Ram Kinematics: Lowering/approach speed: 200 mm/sec; Pressing speed: 20 mm/sec; Return speed: 170 mm/sec.
- Backgauge Kinematics: X-axis: 450 mm/sec (±0.1 mm); R-axis: 100 mm/sec (±0.2 mm); Z1/Z2-axis: 800 mm/sec (±1 mm).
- Dimensions: Distance between frames: 2,550 mm; Throat depth: 475 mm; Table height: 911 mm; Ram stroke: 400 mm.
- CNC System: Delem DA 53 Tx CNC graphical touchscreen with automated CNC anti-deflection crowning compensation.
- Tooling Clamping: Quick-release punch clamps with Push Provision for rapid vertical tool changeovers.
Capacity & Sizing Guidance
High pressing velocity (20 mm/sec) requires tooling rated for dynamic impact. Working tonnage is calculated from F ≈ (k × σb × L × t²) / V. Dynamic anti-deflection crowning automatically adjusts the bed profile based on material parameters entered into the Delem CNC controller.
Materials Formed
Cold-rolled mild steel, galvanized steel, stainless steel (AISI 304, 316), aluminium alloys, and pre-painted sheet metal.
Applications & Industries
High-volume electrical switchgear enclosures, automotive sheet metal pressings, commercial appliance housings, HVAC casing, and precision contract manufacturing.
Selection Guidance
Select the Hawk Turbo for multi-shift production where reducing cycle time per bend directly translates into higher daily piece output and lower electrical costs. For all-electric, zero-oil requirements, evaluate the Albatross 40.
Engineering Questions & Answers
- What is a servo-hydraulic press brake?
- A servo-hydraulic press brake pairs AC servo motors directly with hydraulic pumps to deliver on-demand flow and pressure. It replaces continuous induction motors with closed-loop servo control, eliminating hydraulic idling and dramatically reducing energy consumption.
- How does the Hawk Turbo achieve >50% energy savings per stroke?
- Conventional press brakes run fixed-displacement hydraulic pumps continuously, dumping unused oil over relief valves when the machine is stationary. The Hawk Turbo's servo motor stops completely during workpiece handling and backgauge repositioning, drawing power only during active cylinder movement.
- Why are rapid approach (200 mm/s) and return (170 mm/s) speeds critical?
- In sheet metal bending, the actual deformation phase accounts for only 15–20% of total cycle time. The remainder is non-productive ram transit. Accelerating approach and retract speeds cuts idle time per stroke, increasing daily production output by up to 30%.
Related Machinery & Engineering Tools
Falcon CNC Press Brake •
Swift CNC Press Brake •
Albatross Electric Press Brake •
Peregrine Servo Hybrid •
Sheet Metal Tonnage Calculator
Brand: Hindustan Hydraulics | Manufacturer: Hindustan Hydraulics, G.T. Road, Suranussi, Jalandhar, Punjab 144027, India | Model: Griffon Series | Category: Heavy-Duty CNC Servo Press Brake (Heavy Form Expert)
Engineering Overview
The Griffon series is the dedicated "Heavy Form Expert" of Hindustan Hydraulics' CNC press brake range, designed and manufactured in Jalandhar, Punjab, India. Engineered for high-tonnage sheet and plate bending from 260 tons (2,600 kN) up to 1,000 tons (10,000 kN) in single-machine configurations—and exceeding 2,000 tons in synchronized tandem and tridem arrangements—the Griffon delivers uncompromising structural rigidity, high-tonnage precision, and over 50% energy savings per stroke compared to legacy heavy bending machinery.
How It Works
The Griffon features a monolithic, stress-relieved steel frame optimized with finite element analysis (FEA) and ultrasonic weld inspection. Large-bore hydraulic cylinders governed by electro-hydraulic proportional valves actuate the heavy ram. Glass scale feedback maintains Y1-Y2 parallelism within ±0.01 mm under immense bending loads. For extreme-length workpieces, two or three Griffon machines are interlocked via a master-slave CNC interface, synchronizing all cylinders seamlessly.
Machine-Specific Technology: Furnace Stress-Relieved Monolithic Frame & Tandem Synchronization
Every Griffon frame undergoes thermal stress relief in a temperature-controlled furnace to eliminate internal welding stresses before precision machining on multi-axis CNC boring mills. This guarantees permanent geometrical alignment under severe cyclic loading. In tandem configurations, machines can operate together as a single unified press brake across lengths of 12 to 18 metres, or independently as two individual machines during standard production runs.
Technical Specifications (Documented Data)
- Tonnage Range: 2,600 kN (260 Ton) to 10,000 kN (1,000 Ton) in single machines; >2,000 Ton in tandem.
- Working Lengths: 3,100 mm to 6,200 mm (up to 18,000 mm in synchronized tandem mode).
- Model Range: Griffon 260-31 (260T / 3.1m / 25 kW / 300 mm stroke), Griffon 340-31 (340T / 3.1m / 37 kW / 300 mm stroke), Griffon 450-31 (450T / 3.1m / 37 kW / 350 mm stroke), Griffon 650-31 (650T / 3.1m / 40 kW / 325 mm stroke), Griffon 800-52 (800T / 5.2m / 40 kW / 325 mm stroke), Griffon 1000-62 (1,000T / 6.2m / 47 kW / 325 mm stroke).
- Kinematics & Speeds: Approach speed: 170 mm/sec; Pressing speed: 14 mm/sec; Return speed: 145 mm/sec.
- Throat Depth & Dimensions: Deep 550 mm throat depth; Ram stroke: 400 mm; Table height: 900 mm; Distance between frames: 2,550 mm (on 3.1m models).
- CNC Automation: Delem DA-53 Tx CNC controller with graphical direct angle programming and dwell pressure regulation.
- Backgauge System: AC servo-driven heavy-duty backgauge (0–550 mm stroke) with manual R & Z adjustments.
Capacity & Sizing Guidance
Bending heavy steel plate (8 mm to 30+ mm) requires significant tonnage and expanded die openings. Air-bending tonnage is estimated by F ≈ (k × σb × L × t²) / V. For thick plates, V-openings typically range from V ≈ 8 × t to 12 × t (and up to 14 × t for high-strength steels like Hardox 450) to prevent plate cracking and tool overloading. Use the Sheet Metal Tonnage Calculator to determine exact force requirements.
Materials Formed
Heavy structural mild steel plate (IS 2062 E250/E350), high-strength low-alloy (HSLA) steels, Hardox wear plates, boiler quality plates, and thick stainless steel plate.
Applications & Industries
Earthmoving equipment (excavator booms, loader arms, dozer blades), railway wagon side sills and sole bars, multi-faceted polygonal lighting and transmission poles (tandem mode), pre-engineered building (PEB) heavy rafters, crane booms, and armoured vehicle fabrications.
Selection Guidance
The Griffon is selected for heavy plate fabrication, earthmoving equipment manufacturing, and infrastructure components requiring forming forces from 260 to 1,000+ tons. For light-to-medium sheet metal fabrication up to 200 tons, the Falcon or Hawk Turbo are recommended.
Engineering Questions & Answers
- What constitutes a heavy-duty CNC press brake?
- A heavy-duty press brake is engineered to deliver forming forces from 250 tons to over 1,000 tons on plate thicknesses from 6 mm to 30+ mm. It requires heavily reinforced, stress-relieved monolithic frames, multi-cylinder electro-hydraulic synchronization, deep throat depths (550+ mm), and dynamic crowning to resist massive bending moments.
- How do Griffon tandem press brakes operate?
- In tandem mode, two separate press brakes are physically aligned and electronically interlocked through a master-slave CNC system. The controller synchronizes all four cylinders (Y1, Y2, Y3, Y4) to within ±0.01 mm, enabling bending of components up to 16+ metres as a single unified machine, or as two independent machines when smaller components are run.
- Why is furnace thermal stress relief critical for high-tonnage frames?
- Welding heavy plate structures introduces severe residual thermal stresses. Without furnace stress-relieving, repeated high-tonnage cyclic bending causes progressive geometrical distortion and fatigue micro-cracking. Hindustan Hydraulics stress-relieves every Griffon frame in an industrial furnace to ensure permanent dimensional stability.
Related Machinery & Engineering Tools
Falcon CNC Press Brake •
Harrier NC Shearing Machine •
Press Brake Configurator •
Sheet Metal Tonnage Calculator •
Manufacturing Infrastructure
Brand: Hindustan Hydraulics | Manufacturer: Hindustan Hydraulics, G.T. Road, Suranussi, Jalandhar, Punjab 144027, India | Model: Albatross 40 | Category: 100% Electric Servo CNC Press Brake
Engineering Overview
The Albatross 40 represents the next generation of sheet metal bending technology, manufactured by Hindustan Hydraulics in Jalandhar, Punjab, India. Engineered with a 100% electric servo drive, the Albatross eliminates hydraulic systems, valves, oil tanks, and seals entirely, delivering silent operation, superior accuracy (±0.005 mm Y-axis repeatability), up to 50% energy savings, and a clean, eco-friendly footprint.
How It Works
The Albatross transmits bending force through twin high-precision ball screws driven by dual 11 kW AC servo motors. Direct mechanical transmission provides instantaneous force response without hydraulic lag or oil thermal expansion. High-resolution absolute rotary encoders continuously measure ball-screw rotational displacement, achieving micro-positioning accuracy of ±0.005 mm at bottom dead centre.
Machine-Specific Technology: Twin Ball-Screw Electric Servo Drive
By replacing hydraulic cylinders with servo-driven ball screws, the Albatross operates with zero hydraulic oil. This eliminates oil deterioration, filter replacements, seal leaks, and temperature-induced angle drift during warm-up periods. Motor power is drawn exclusively during active ram travel, lowering electrical consumption by up to 50% compared to conventional hydraulic machines.
Technical Specifications (Documented Data)
- Bending Force: 400 kN (40 Ton); Albatross 80 configuration available at 800 kN (80 Ton).
- Working Length: 2,040 mm (Albatross 40) / 2,550 mm (Albatross 80).
- Drive Motors: 2 × 11 kW high-torque AC servo motors.
- Ram Kinematics: Pressing speed: up to 30 mm/sec; Maximum Y-axis speed: 200 mm/sec.
- Backgauge Speeds: X-axis: 450 mm/sec; R-axis: 100 mm/sec; Z1/Z2-axis: 800 mm/sec on dual LM guides.
- Positioning Accuracy: Y-axis repeatability: ±0.005 mm; X-axis: ±0.1 mm; R-axis: ±0.2 mm.
- Dimensions: Distance between frames: 1,550 mm; Throat depth: 200 mm; Daylight: 375 mm; Stroke: 150 mm; Table height: 853 mm.
- Controller: High-end graphical CNC controller with 2D programming and job memory.
Capacity & Sizing Guidance
With 40 tons of bending capacity and a 2,040 mm bed, the Albatross 40 is engineered for high-precision forming of thin-to-medium gauge sheet metals (typically 0.5 mm to 3.0 mm mild steel, and up to 2.0 mm stainless steel). Air-bending force is calculated using F ≈ (k × σb × L × t²) / V. For verified tonnage and tooling recommendations, refer to the Sheet Metal Tonnage Calculator.
Materials Formed
Precision cold-rolled mild steel (CRCA), stainless steel (AISI 304, 316), aluminium alloys (1050, 5052), brass, and copper.
Applications & Industries
Electronic hardware chassis, server enclosures, medical device housings, precision laboratory equipment, telecommunications enclosures, and high-precision stainless steel hardware.
Selection Guidance
Choose the Albatross 40 when your manufacturing requires ultra-high angle repeatability (±0.005 mm), cleanroom-compatible oil-free operation, silent running, and minimal energy consumption. For heavy-gauge sheet or higher tonnage needs, consider the Hawk Turbo or Falcon.
Engineering Questions & Answers
- What is an all-electric press brake?
- An all-electric press brake replaces hydraulic power units, proportional valves, and cylinders with high-torque AC servo motors driving precision ball screws or belt-pulley mechanisms. It eliminates hydraulic fluid entirely while providing sub-micron positioning repeatability.
- How does the Albatross achieve ±0.005 mm Y-axis accuracy?
- Direct mechanical coupling between high-resolution absolute servo encoders and pre-loaded precision ground ball screws eliminates hydraulic compressibility, valve response latency, and oil viscosity variations.
- What maintenance is eliminated by removing hydraulic systems?
- The Albatross eliminates hydraulic oil replacements, oil filtration, valve seal rebuilds, pump overhauls, and oil cooler maintenance. Routine upkeep is limited to periodic mechanical lubrication of ball screws and linear guideways.
Related Machinery & Engineering Tools
Peregrine PG-25 Hybrid Press Brake •
Hawk Turbo High-Speed Press Brake •
Swift CNC Press Brake •
Sheet Metal Tonnage Calculator
Brand: Hindustan Hydraulics | Manufacturer: Hindustan Hydraulics, G.T. Road, Suranussi, Jalandhar, Punjab 144027, India | Model: Peregrine PG-25 | Category: CNC Servo-Hybrid Press Brake
Engineering Overview

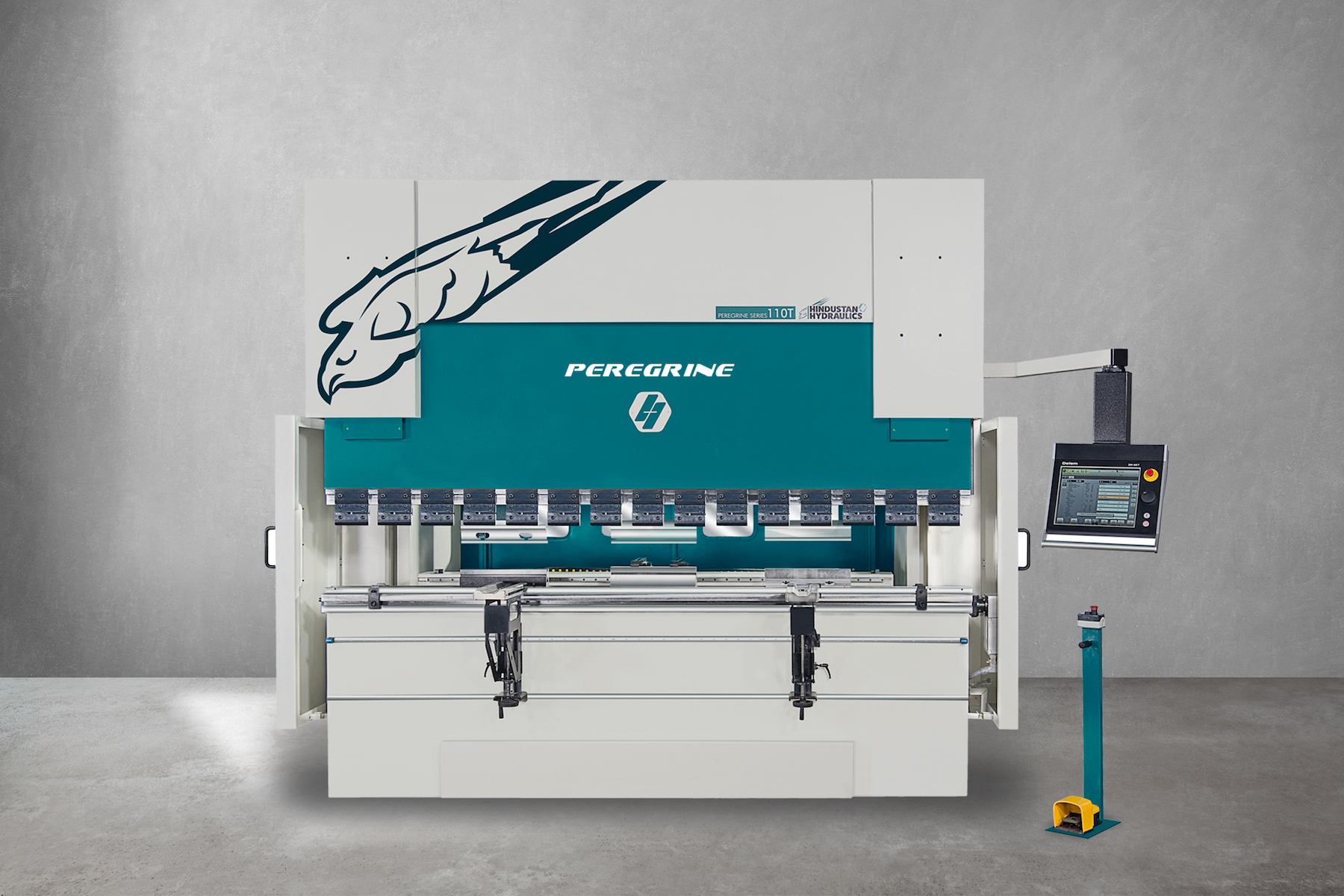

The Peregrine (PG-25) is an ultra-compact, high-speed CNC servo-hybrid press brake manufactured by Hindustan Hydraulics in Jalandhar, Punjab, India. Combining hydraulic power density with servo motor dynamic responsiveness, the Peregrine delivers up to 2.5 times faster bending speeds while slashing energy consumption by 70% compared to conventional hydraulic machines. Featuring a compact footprint and a 65% smaller hydraulic reservoir, it is optimized for high-speed cellular manufacturing.
How It Works
The Peregrine uses a closed-loop servo-hybrid drive. A bidirectional AC servo motor drives a compact hydraulic pump that feeds oil directly into the single cylinder press beam guided on heavy LM guides. Oil is pumped on-demand in precise volumes; when the beam reaches bottom dead centre, the servo motor maintains holding pressure without dumping excess flow over relief valves.
Machine-Specific Technology: Compact Hybrid Power Pack with 65% Smaller Reservoir
By eliminating proportional throttling valves and continuous circulation, the Peregrine's hydraulic reservoir volume is reduced by 65%. This drastically minimizes fluid turnover volume, eliminates thermal oil breakdown, and maintains consistent oil viscosity across 24/7 manufacturing shifts without requiring dedicated external oil coolers.
Technical Specifications (Documented Data)
- Bending Capacity: 250 kN (25 Ton).
- Working Length: 1,250 mm.
- Stroke Length: 150 mm; Ram stroke: 200 mm.
- Speeds: Approach speed: 250 mm/sec; Pressing speed: 20 mm/sec; Return speed: 250 mm/sec.
- Backgauge Kinematics: AC servo-driven X-axis at 250 mm/sec with manual R-axis and Z on LM guide.
- Dimensions: Envelope (L×W×H): 1,500 × 1,100 × 2,510 mm; Distance between frames: 850 mm; Throat depth: 375 mm; Table height: 915 mm.
- Controller: Delem DA-53 Tx CNC graphical touchscreen with direct angle computation.
- Tooling: Quick-release punch clamps with European tooling compatibility.
Capacity & Sizing Guidance
Rated at 25 tons across 1,250 mm, the Peregrine is suited for sheet thicknesses up to 2.5 mm mild steel and 1.5 mm stainless steel on standard air-bending die openings. Consult the Sheet Metal Tonnage Calculator to confirm tonnage across specific bend geometries.
Materials Formed
Mild steel, stainless steel, aluminium, phosphor bronze, brass, and copper thin-gauge sheets.
Applications & Industries
Small electrical terminal boxes, sensor clips, automotive brackets, consumer electronics brackets, medical chassis, and prototyping cellular bays.
Selection Guidance
Select the Peregrine PG-25 for small, high-mix precision parts where large press brakes are inefficient. The lightning-fast 250 mm/sec approach and return speeds maximize hourly part throughput. For longer bending lengths, evaluate the Albatross 40 or Swift.
Engineering Questions & Answers
- What is a servo-hybrid press brake?
- A servo-hybrid press brake pairs an electric servo motor directly with a bidirectional hydraulic pump to control cylinder displacement without proportional throttling valves. It delivers the compact force density of hydraulics with the precision and energy efficiency of electric servo technology.
- Why is the Peregrine PG-25 2.5x faster in cycle time?
- The bidirectional servo pump accelerates instantaneously to 250 mm/sec approach and return velocities, shrinking non-productive transit time per cycle to less than one second.
- What are the benefits of a 65% smaller hydraulic oil tank?
- A smaller oil tank reduces oil volume and replacement costs, accelerates thermal stabilization, eliminates oil overheating without auxiliary chillers, and enables an exceptionally compact machine footprint.
Related Machinery & Engineering Tools
Albatross 40 Electric Press Brake •
Swift CNC Press Brake •
Hawk Turbo Press Brake •
Press Brake Configurator
