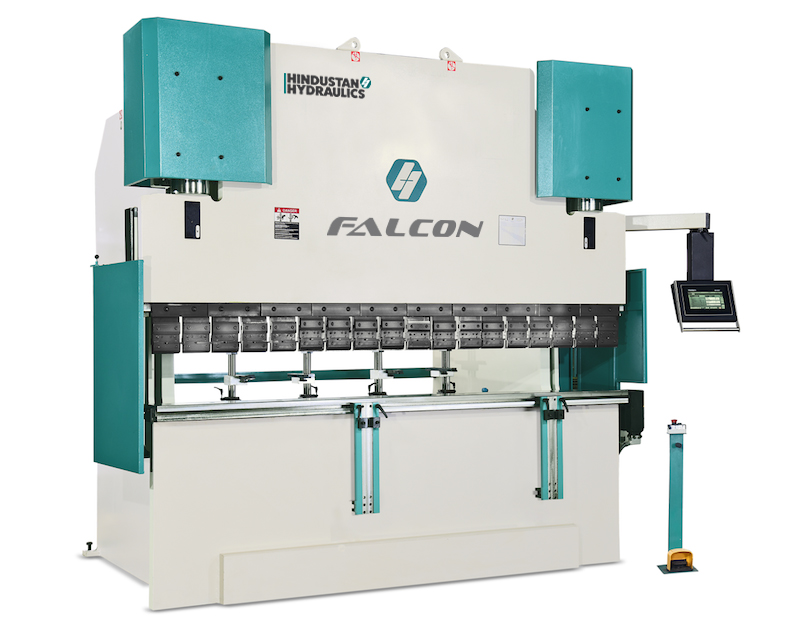

Hindustan Hydraulics with its 25 years of long experience in manufacturing of CNC hydraulic press brakes guarantees a product with engineering excellence, reliability & performance with precision for long and extensive use.
High quality working surfaces are achieved with precise and accurate single set up machining on CNC milling machines.These surface finishes are key to the bending results over different load conditions.
Each machine member is designed for minimum deflection under constant and full load applications even over long periods. Further each fabricated part is shot blasted and all frames are stress relieved to distortion free performance.

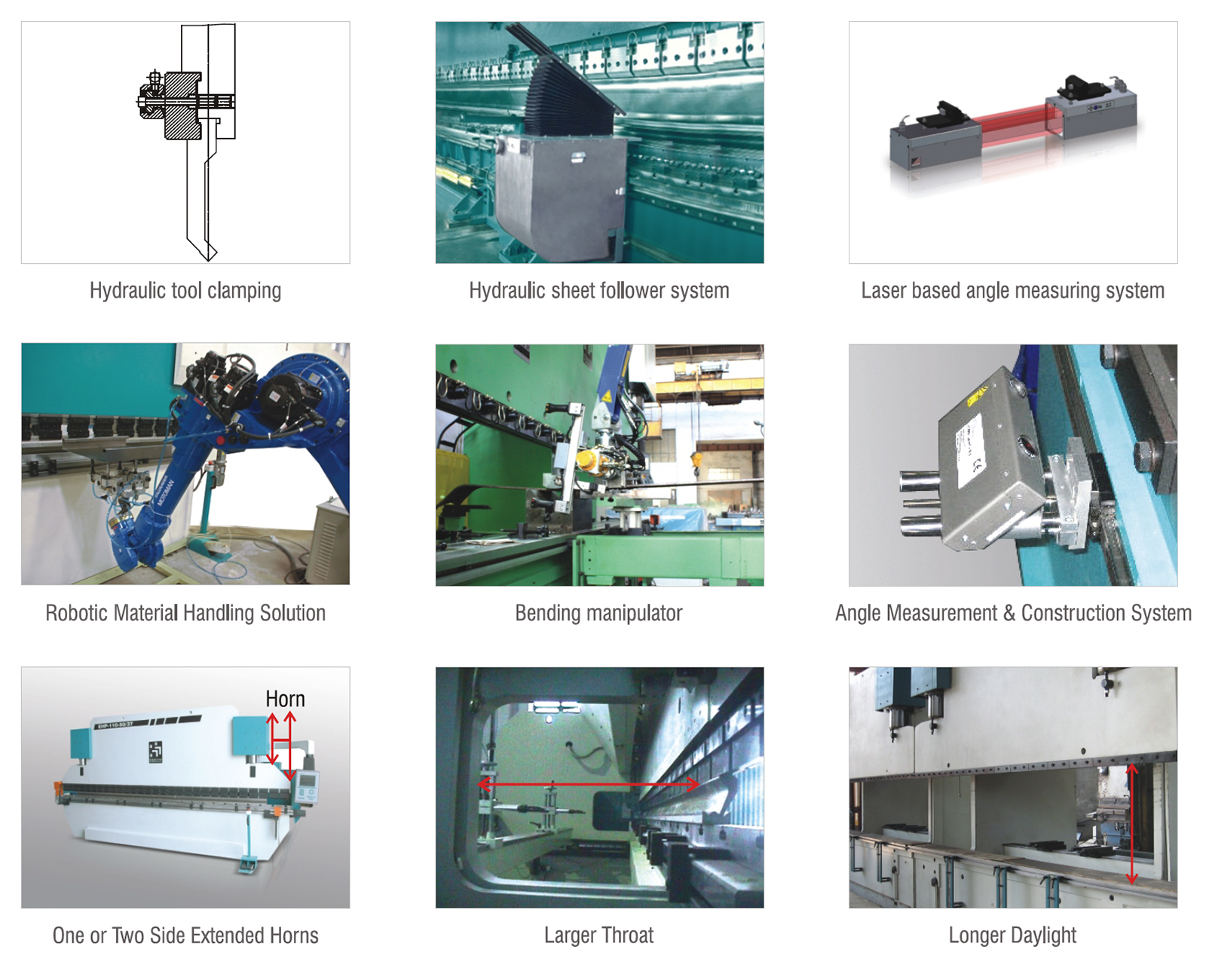

Complete tooled up bending solutions with different backguage configurations, crowning options and material handling options including robotics is to choose from to achieve desired results at par with the best in world.
The Profile T software facilitates offline programming and simulation the bending process. The profile T software offers advances programming option in 2D/3D in line with the DA touch controller software. Programming the product graphically shows the true scale representation of the intended product. Realistic product visualization gives feedback on the feasibility, collisions, required tools and tool adaptors for production. Production time calculations, 3D finger view, print function and product sharing over the windows networking with the CNC press brake and standard features on the software package.

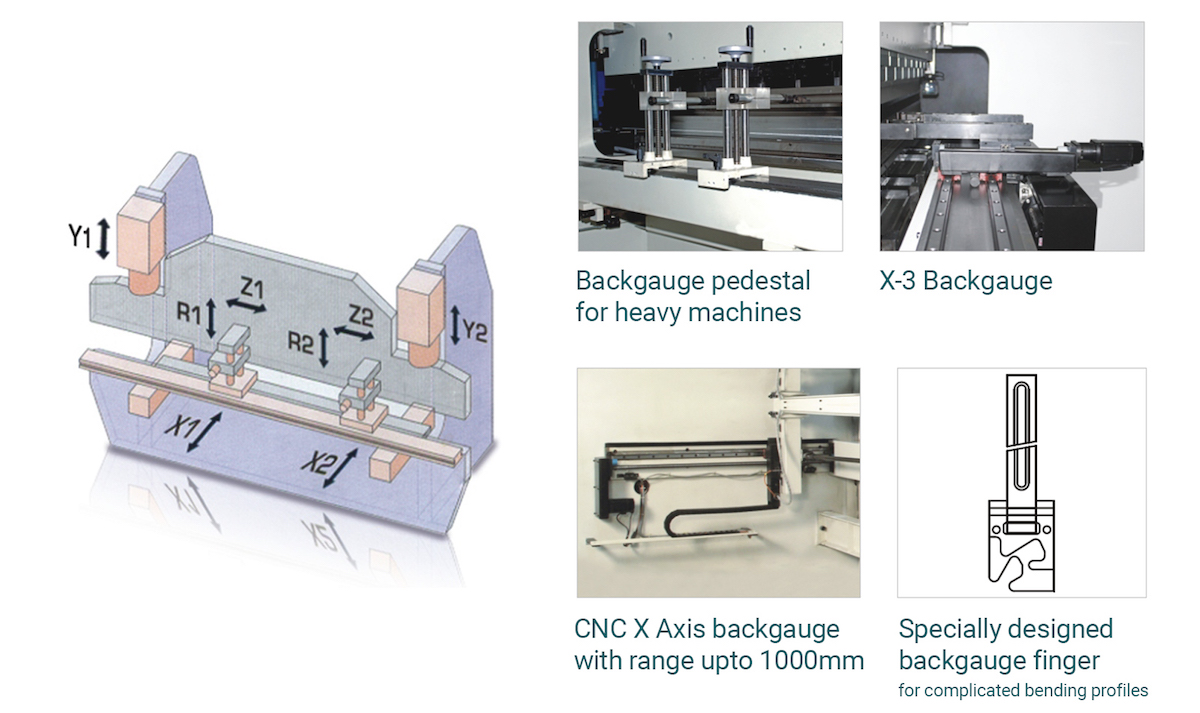

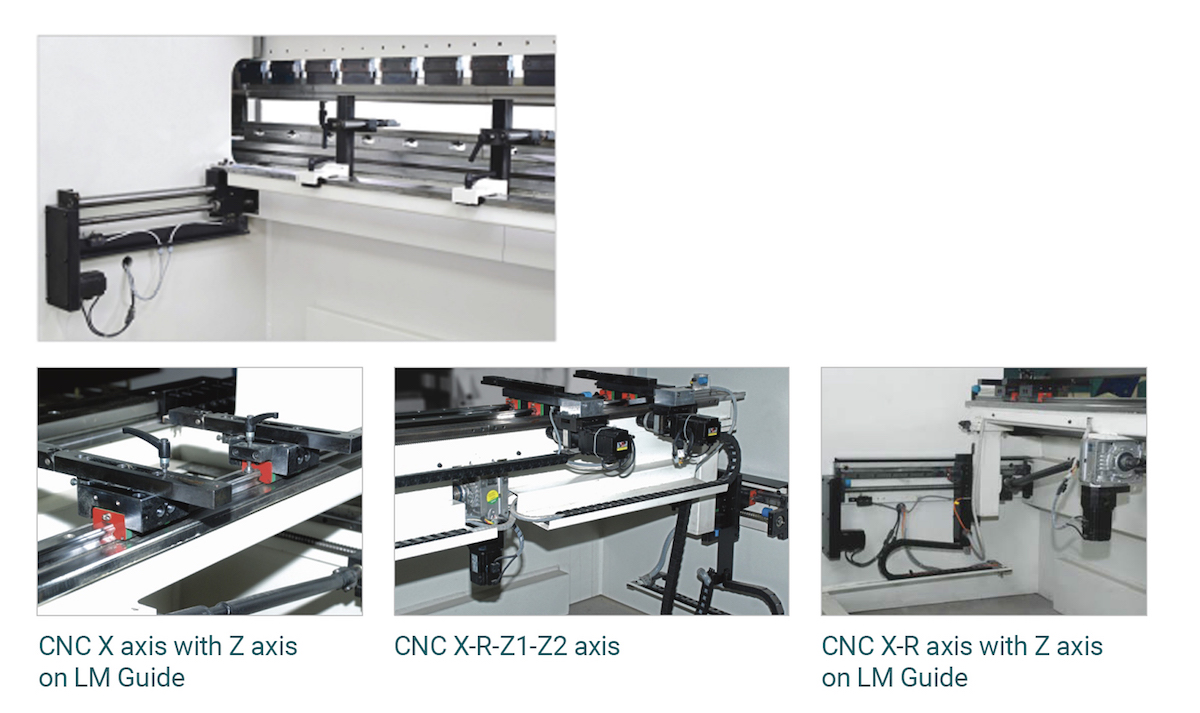

CNC backguage X axis is driven on dual high precision ball screws through AC servo motor. Basic backguage AC 21 0 is with R and Z axis manually adjustable with two flip type fingers. CNC Backguage ensures positioning accuracy of+/- 0.1 mm with 100 % repeatability .All backguage fingers are with lay-on and programmable retraction as standard feature. The heavy duty backguage design ensures accuracy and performance over long and tough Indian working conditions. All the machines are designed for the upgradations of the backguage configurations at later dates also.

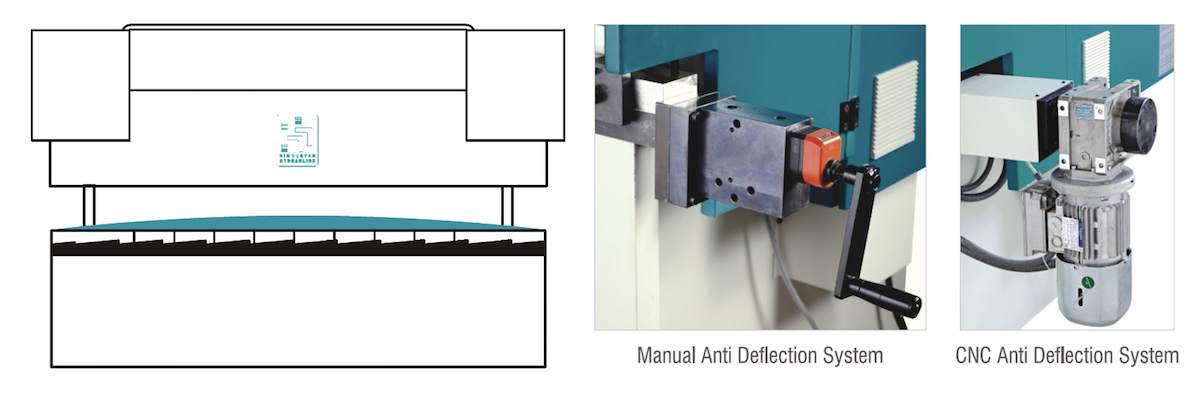

To achieve very fine and accurate bending values over the entire long lengths, ADS - Anti deflection system is incorporated in lower bed itself to avoid any loss of daylight.
The principle is based on movement of two special profile wedges, which moves over each other to generate height in the centre of the bending lengths. Spring back of hard material, wear tear of tools in the centre and deflection in the frame under full load applications affect the desired bending accuracies over the long length.
ADS can be in manual and motorized CNC option. In manual ADS, the movement is with hand wheel based on counter reading. While in CNC motorized driven option, the controller calculates value as per the requirements of fed data and drives the wedges to achieve accurate results.

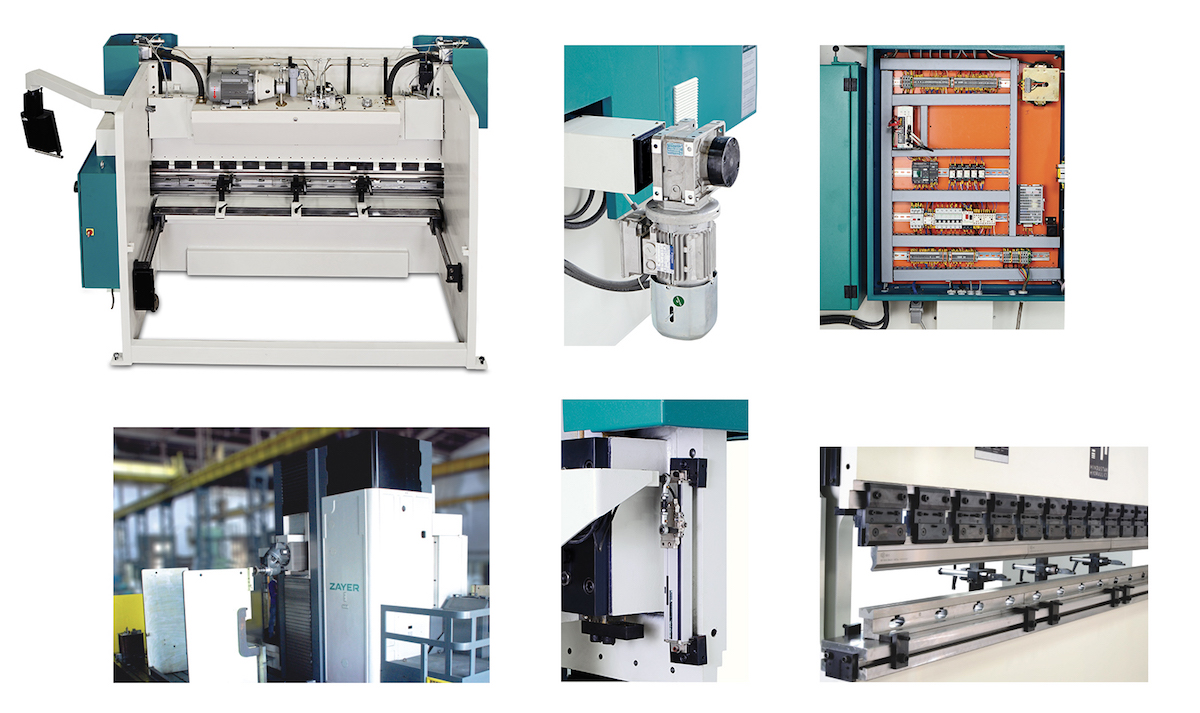

"EHP" CNC hydraulic Press Brake is with following basic scope
Specifications may change due to technical alterations / upgradations.
