Hybrid Press Brake
Peregrine Series

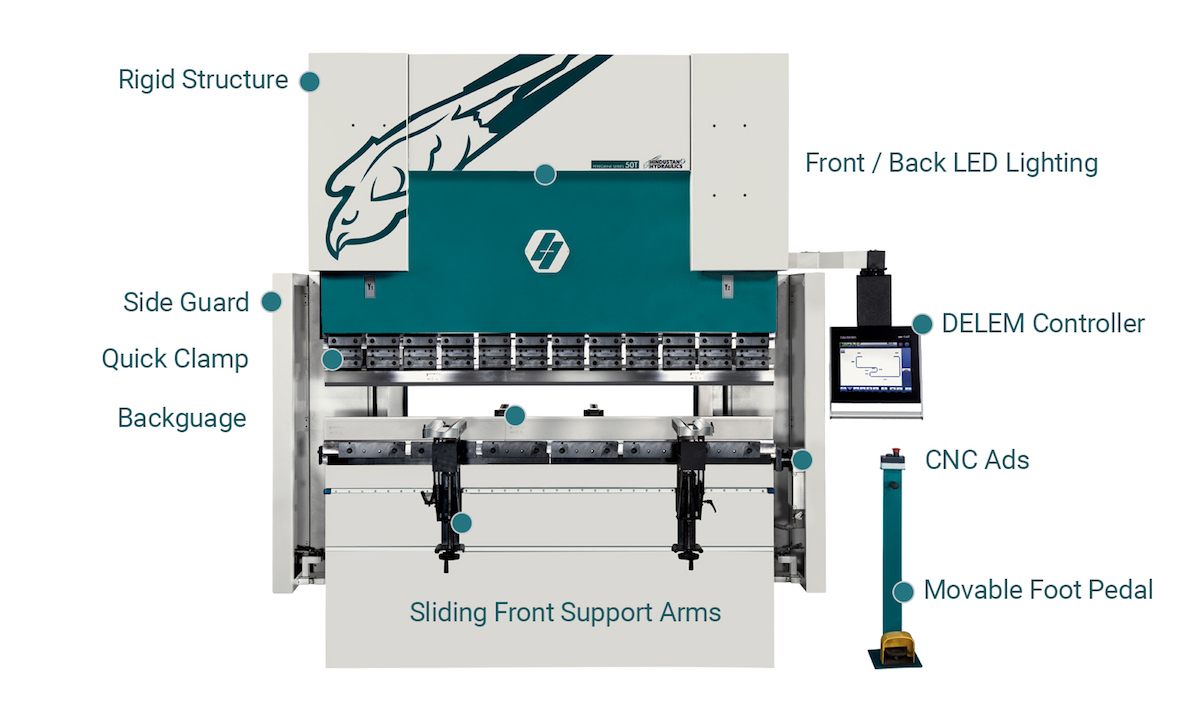

Peregrine Series
Peregrine Series

Features

  • DHD with real time control of approach speed.
  • Completely closed loop system
  • Fully controlled approaich speed thru pump.
  • Full decompression control for precise springback calculation.
  • Speed,position and force controlled thru servo pump
  • High positiong of ram achived without the use of Proportional valve
  • High Bending Accuracy +/-0.005mm
  • Very fast approach bending and return 250-20-250 mm/s

Key Benefits

  • Very fast cycle times. 75% faster
  • Enviorment friendly green machine.
  • 70% lower energy consumption.
  • 65 % smaller tank size
  • low oil heating for long system life.
  • Quiet bending operation.
  • Maintenance free.

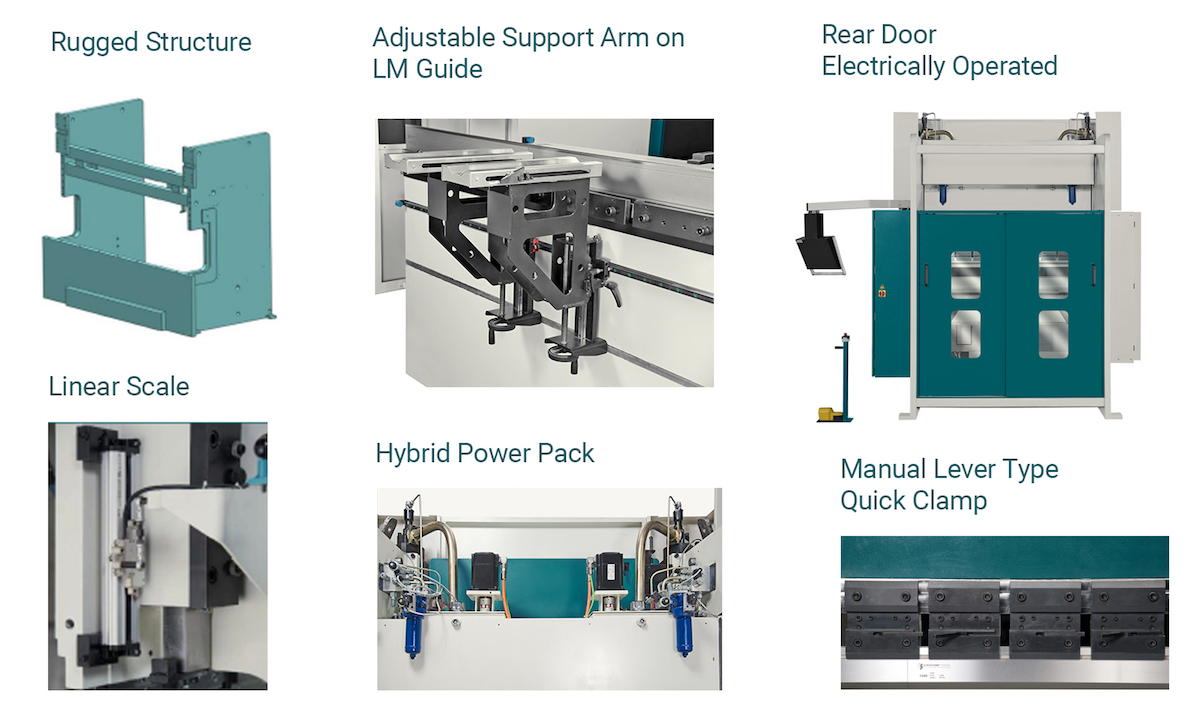

Peregrine Series
Peregrine Series

CNC Controllers

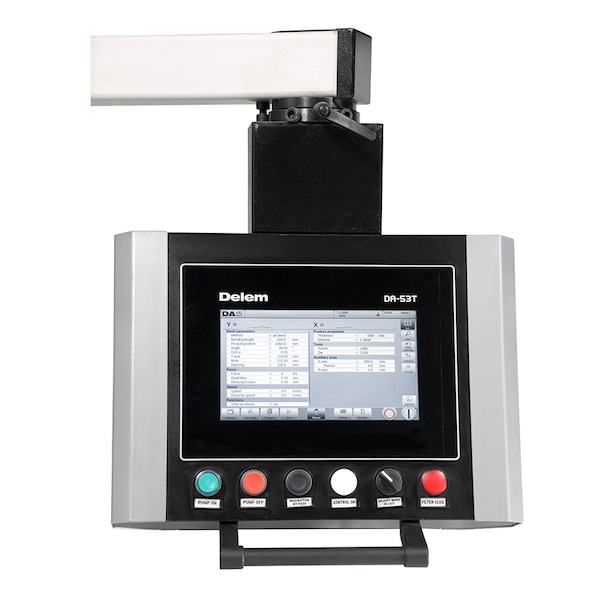

DA-53T (Standard)
Peregrine Series
  • "Hot-key" touch navigation
  • 10.1" high resolution colour TFT
  • Up to 4 axes (Yl ,Y2 + 2 aux. axes)
  • Crowning control
  • Tool / material / product library
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. Tandemlink (option)
  • USB memory stick interfacing
  • Profile-T offline software

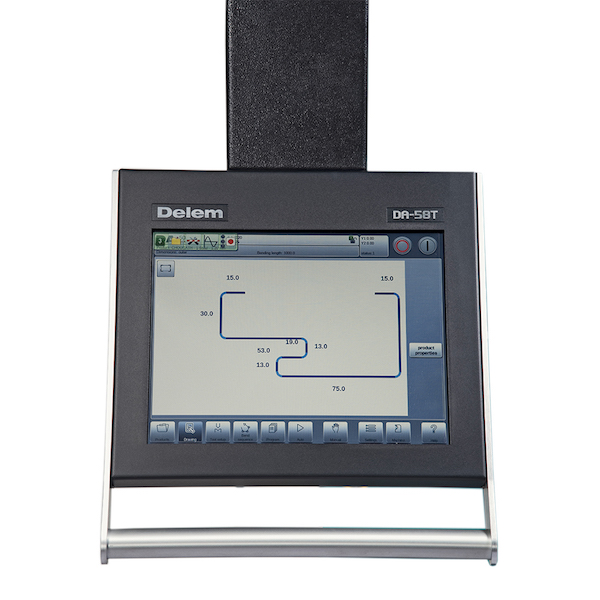

DA-58T (Optional)
Peregrine Series
  • 2D graphical touch screen programming
  • 15" high resolution colour TFT
  • Bend sequence calculation
  • Crowning control
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves. USB, peripheral interfacing
  • Profile-T offline software

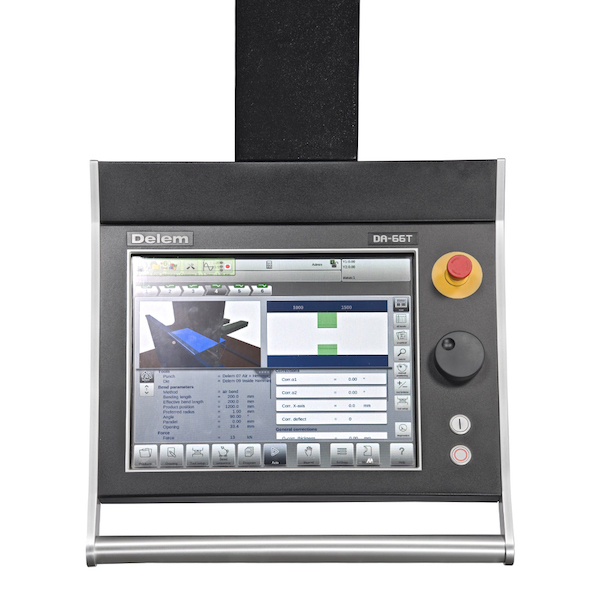

DA-66T (Optional)
Peregrine Series
  • 2D graphical touch screen programming mode
  • 17" high resolution colour TFT
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the controllers multitasking environment Sensor bending & correction interface Profile-TL offline software

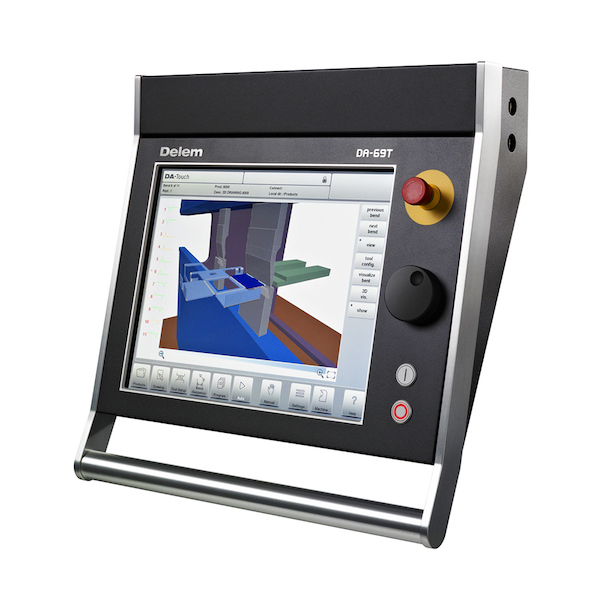

DA-69T (Optional)
Peregrine Series
  • 3D and 2D graphical touch screen programming mode
  • 3D visualisation in simulation and production
  • 17" high resolution colour TFT
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the controllers multitasking environment Sensor bending & correction interface
  • Profile-T3D offline software

CNC Anti Deflection System

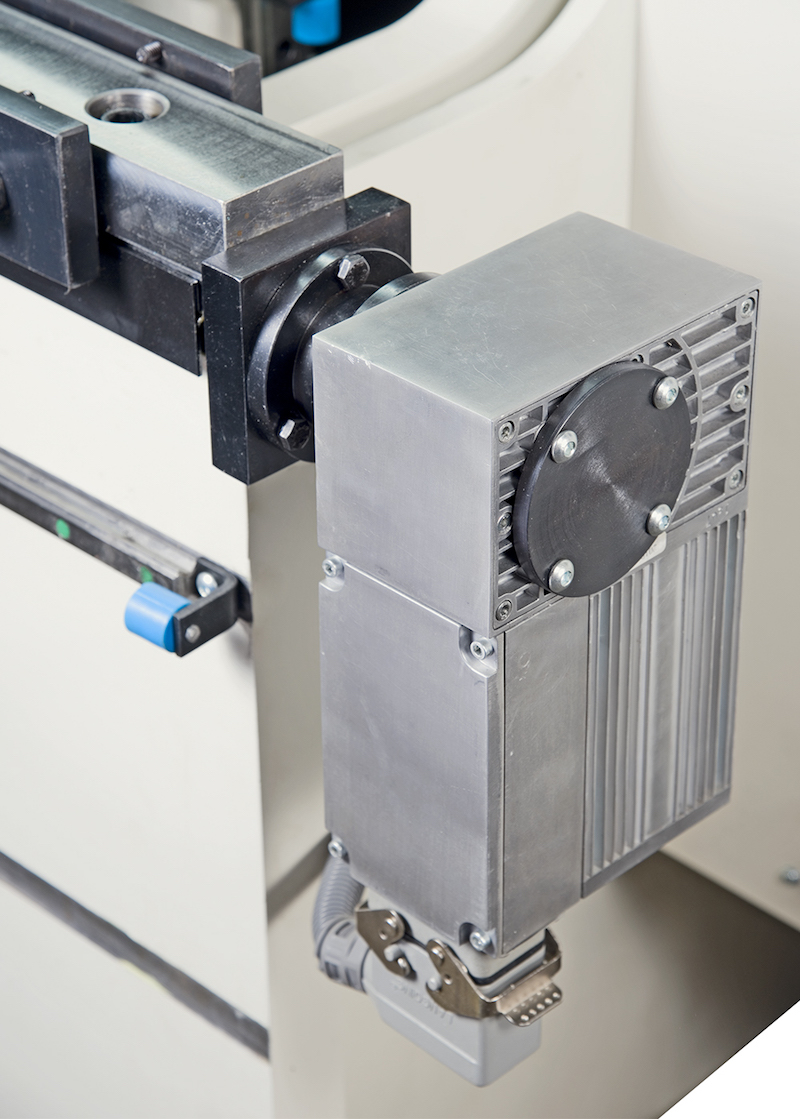

Peregrine SeriesTo achieve very fine and accurate bending values over the entire long lengths, ADS-Anti defection system is incorporated in lower bed itself to avoid any loss of daylight.
The principle is based on movement of two special profile wedges, which moves over each other to generate height in the centre of the bending lengths. Spring back of hard material, wear tear of tools in the centre and deflection in the frame under full load applications affect the desired bending accuracies over the long length.

Backgauge

The backgauge is built on a heavy duty mechanical structure fixed on the side frames of the press brake. The standard configuration is servo-controlled X AXIS with two manually adjusted fingers moving on double linear guides.

As an option we can offer 2 AXIS (X-R),4AXIS (X, R,Zl ,Z2) and 6AXIS (Xl ,X2, Rl, R2,Zl ,Z2).

Movement is accomplished by high precision rack and pinions sliding on linear guides, powered by servo motors for all axis. This system ensures high precision with very low noise and maintenance. Low backlash in the system lets us achieve very high position for small increments.

Backgauge X1 R1 Z1 X2 R2 Z2
1 Axis - - - - -
2 Axis - - - -
4 Axis - -
6 Axis
Peregrine Series

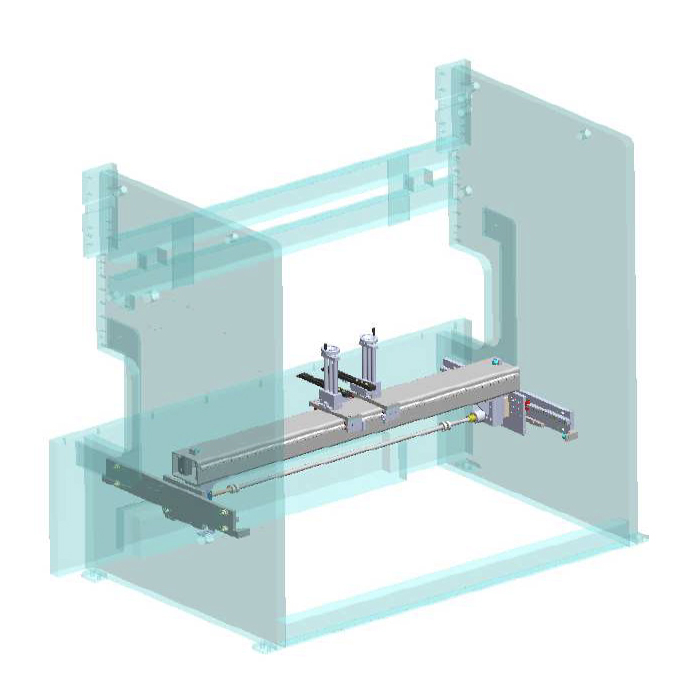

1 Axis (X)

Peregrine Series

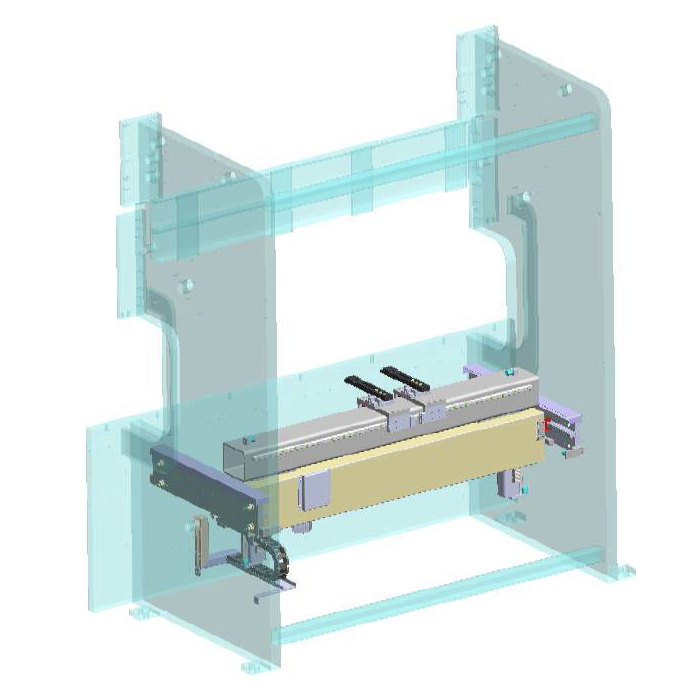

2 Axis (X & R)

Peregrine Series

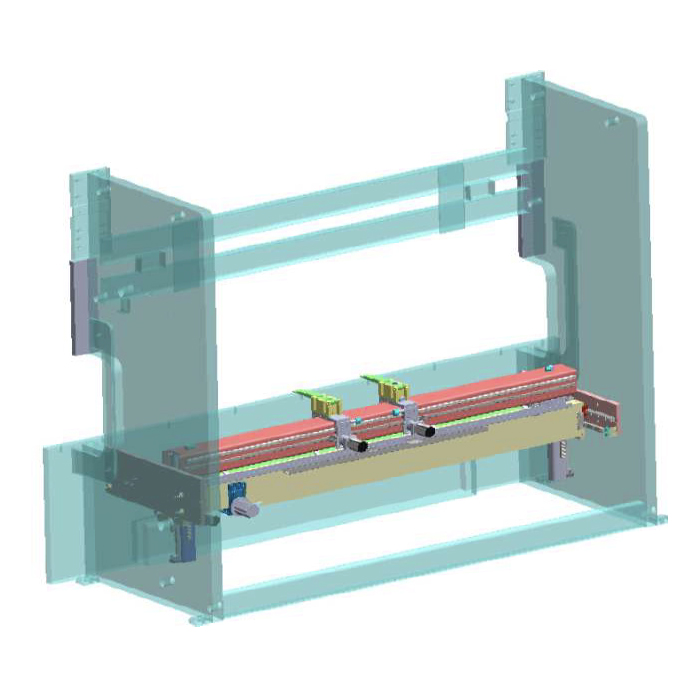

4 Axis (X, R, Z1 & Z2)

Peregrine Series

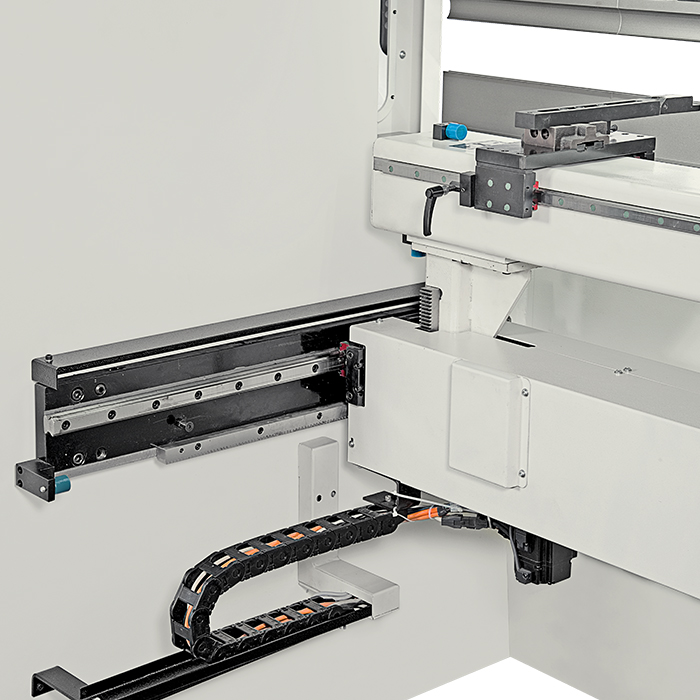

Backgauge Movement on LM Guide & Hardened Rack on Pinion

Technical Specifications

Type Capacity (KN) Working Length (mm) Daylight (mm) Stroke (mm) Throat (mm) Approach Speed (mm/sec) Pressing Speed (mm/sec) Return Speed (mm/sec) X-Axis Speed (m/min)
PG-50 500 2000 425 200 400 250 20 250 33
PG-110 1100 3100 475 250 400 250 18 250 33
PG-150 1500 3100 475 250 400 250 15 250 33

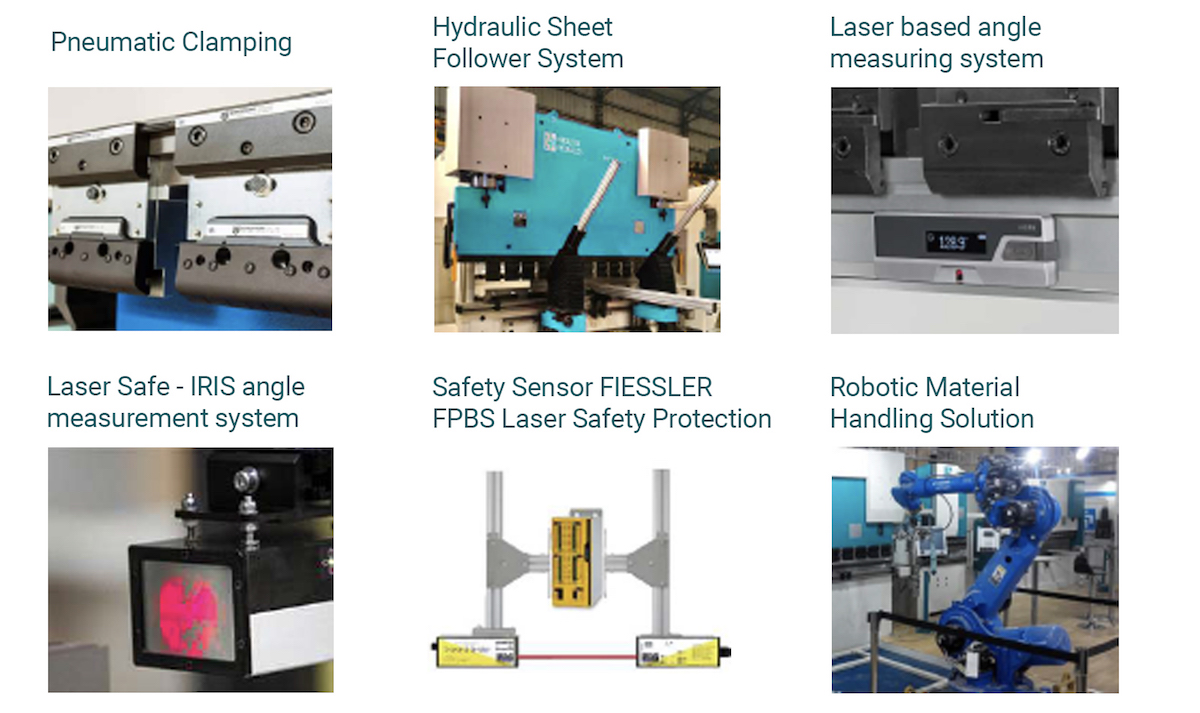

Optional Accessories

Peregrine Series

Specifications may change due to technical alterations / upgradations.
